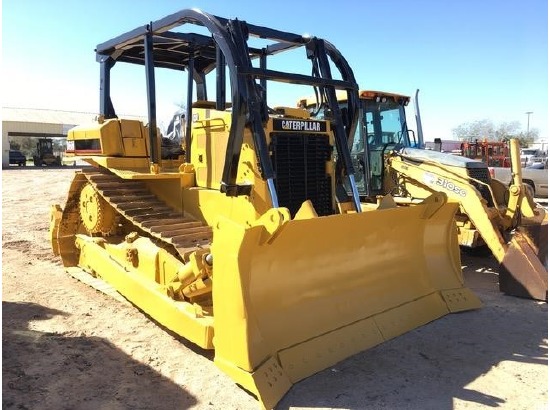

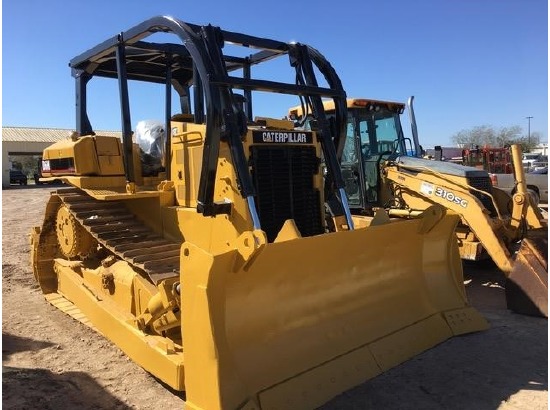

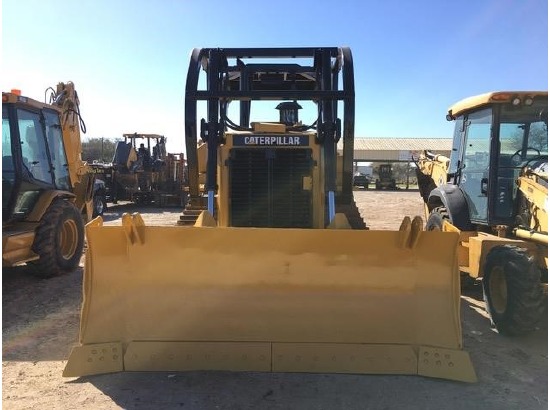

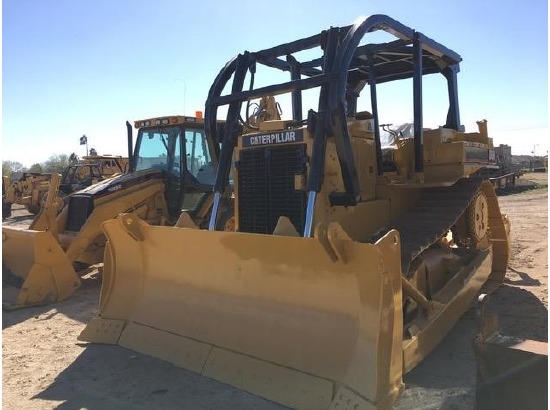

CAT D6H
The Caterpillar D6 track-type tractor is a medium bulldozer manufactured by Caterpillar Inc. with a nominal operating weight of 18 tons.
| Dimensions | ||
| A. LENGTH W/ BLADE | 16.4 ft in | 5010 mm |
| B. WIDTH OVER TRACKS | 7.7 ft in | 2340 mm |
| C. HEIGHT TO TOP OF CAB | 10.2 ft in | 3120 mm |
| D. LENGTH OF TRACK ON GROUND | 8.6 ft in | 2620 mm |
| E. GROUND CLEARANCE | 1.2 ft in | 376 mm |
| F. LENGTH W/O BLADE | 13.3 ft in | 4060 mm |
|
Undercarriage
|
||
| G. TRACK GAUGE | 6.2 ft in | 1880 mm |
| H. STANDARD SHOE SIZE | 22 in | 560 mm |
| Engine | ||
| MAKE | Caterpillar | |
| MODEL | 3306 | |
| GROSS POWER | 165 hp | 123 kw |
| DISPLACEMENT | 640.7 cu in | 10.5 L |
| Operational | ||
| OPERATING WEIGHT | 39156.3 lb | 17761 kg |
| FUEL CAPACITY | 89 gal | 337 L |
| HYDRAULIC FLUID CAPACITY | 12.2 gal | 46 L |
| Transmission | ||
| TYPE | powershift | |
| NUMBER OF FORWARD GEARS | 3 | |
| NUMBER OF REVERSE GEARS | 3 | |
| MAX SPEED – FORWARD | 7 mph | 11.3 km/h |
| MAX SPEED – REVERSE | 8.9 mph | 14.4 km/h |
| Undercarriage | ||
| GROUND PRESSURE | 8.6 psi | 59 kPa |
| GROUND CONTACT AREA | 4557 in2 | 2.9 m2 |
| STANDARD SHOE SIZE | 22 in | 560 mm |
| NUMBER OF TRACK ROLLERS PER SIDE | 6 | |
| TRACK GAUGE | 6.2 ft in | 1880 mm |
| Hydraulic System | ||
| RELIEF VALVE PRESSURE | 2875 psi | 19822.4 kPa |
| PUMP FLOW CAPACITY | 44.1 gal/min | 167 L/min |
| Standard Blade | ||
| WIDTH | 11 ft in | 3360 mm |
| HEIGHT | 49.5 in | 1257 mm |
| CAPACITY | 5.1 yd3 | 3.9 m3 |
| CUTTING DEPTH | 18.6 in | 472 mm |
| Dimensions | ||
| LENGTH W/O BLADE | 13.3 ft in | 4060 mm |
| LENGTH W/ BLADE | 16.4 ft in | 5010 mm |
| WIDTH OVER TRACKS | 7.7 ft in | 2340 mm |
| HEIGHT TO TOP OF CAB | 10.2 ft in | 3120 mm |
| LENGTH OF TRACK ON GROUND | 8.6 ft in | 2620 mm |
| GROUND CLEARANCE | 1.2 ft in | 376 mm |
