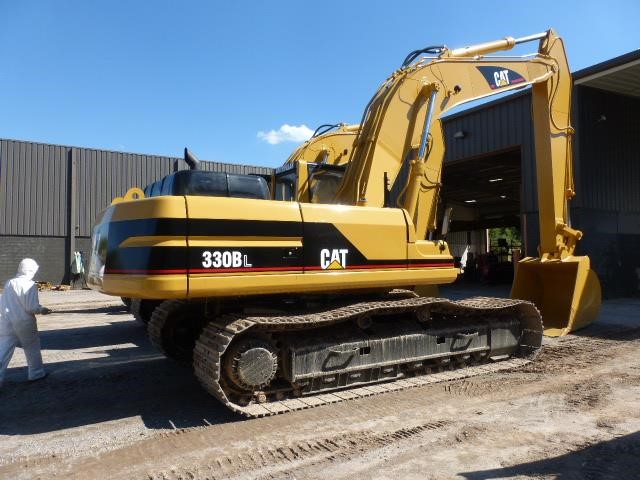

CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
CAT 330 BL
Zoom images
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL
  • CAT 330 BL

CAT 330 BL

,

The 330BL incorporates the following features;

  • Fully adjustable, ergonomically designed operator environment
  • Front driveline features an integrated transmission-mounted differential
  • Automatic or manual operating modes
  • Long, sloping hood design and floor-to-ceiling glass cab door for added visibility
  • Include an auto warm-up system, self-diagnosed fluid-level checks and automatic lubrication system

Hydraulics
Auxiliary hydraulic flow control offers 4 programmable settings to precisely match hydraulic tool requirements.

Undercarriage
Caterpillar® excavator undercarriage is stable, durable and low maintenance. Optional heavy-duty hydraulic variable undercarriage allows usage of heavier demolition tool.

Operator Station
Roomy, quiet, automatically climate controlled cab has excellent sightlines to the work tool.

Upper frame and counterweight
Heavy-duty upper frame handles increased loads and movements. Additional counterweight provides maximum stability throughout the recommended working range.

Booms, sticks and working tools
3-piece Ultra-high Demolition front reaches 17.1 m on
325B, 21 m on 330B and 22.8 m on 345B. Optional retrofit boom nose and demolition sticks for demolition at lower heights or normal digging turn your machine into a true all-rounder. Caterpillar demolition tools are built to optimize the excavator/tool system.

UGX1,200,000 / day

quantity
Add to Wishlist
Sold By: KUMUKUTU.COM
Categories: , Tags: , , ,
Description
Engine
MAKE Caterpillar
MODEL 3306TA
GROSS POWER 236 hp 176 kw
NET POWER 222 hp 165.5 kw
POWER MEASURED @ 1800 rpm
DISPLACEMENT 640.7 cu in 10.5 L
ASPIRATION Turbocharged and Aftercooled
NUMBER OF CYLINDERS 6
Operational
OPERATING WEIGHT 74300 lb 33701.9 kg
FUEL CAPACITY 147.9 gal 560 L
COOLING SYSTEM FLUID CAPACITY 11.9 gal 45 L
HYDRAUILC SYSTEM FLUID CAPACITY 105.7 gal 400 L
ENGINE OIL CAPACITY 7.9 gal 30 L
SWING DRIVE FLUID CAPACITY 4 gal 15 L
OPERATING VOLTAGE 24 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4980 psi 34335.9 kPa
HYDRAULIC PUMP FLOW CAPACITY 126.8 gal/min 480 L/min
Swing Mechanism
SWING TORQUE 78200 lb ft 106025 Nm
Undercarriage
SHOE SIZE 29.5 in 750 mm
MAX TRAVEL SPEED 2.9 mph 4.6 km/h
DRAWBAR PULL 60250 lb 268 kN
TRACK GAUGE 8.5 ft in 2590 mm
Buckets
REFERENCE BUCKET CAPACITY 2 yd3 1.5 m3
MINIMUM BUCKET CAPACITY 1.7 yd3 1.3 m3
MAXIMUM BUCKET CAPACITY 2.8 yd3 2.1 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 21’4″ (6500mm) / Stick 12’10” (3900mm)
SHIPPING HEIGHT OF UNIT 11.8 ft in 3610 mm
SHIPPING LENGTH OF UNIT 36.4 ft in 11080 mm
MAX DIGGING DEPTH 26.5 ft in 8080 mm
MAX REACH ALONG GROUND 38.1 ft in 11620 mm
MAX CUTTING HEIGHT 35.3 ft in 10770 mm
MAX LOADING HEIGHT 24.9 ft in 7600 mm
MAX VERTICAL WALL DIGGING DEPTH 23.7 ft in 7230 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2 Boom 21’4″ (6500mm) / Stick 10’10” (3300mm)
SHIPPING HEIGHT OF UNIT 10.8 ft in 3290 mm
SHIPPING LENGTH OF UNIT 36.1 ft in 11010 mm
MAX DIGGING DEPTH 24.6 ft in 7490 mm
MAX REACH ALONG GROUND 36.2 ft in 11030 mm
MAX CUTTING HEIGHT 34.3 ft in 10440 mm
MAX LOADING HEIGHT 23.9 ft in 7290 mm
MAX VERTICAL WALL DIGGING DEPTH 21.5 ft in 6540 mm
Boom/Stick Option (HEX) 3
BOOM/STICK OPTION (HEX) 3 Mass Boom 20’3″ (6180mm) / Stick 8’4″ (2600mm)
SHIPPING HEIGHT OF UNIT 11.7 ft in 3560 mm
SHIPPING LENGTH OF UNIT 35.3 ft in 10760 mm
MAX DIGGING DEPTH 21.6 ft in 6590 mm
MAX REACH ALONG GROUND 33.5 ft in 10210 mm
MAX CUTTING HEIGHT 33.4 ft in 10170 mm
MAX LOADING HEIGHT 21.9 ft in 6680 mm
MAX VERTICAL WALL DIGGING DEPTH 19.3 ft in 5890 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 11 ft in 3340 mm
HEIGHT TO TOP OF CAB 10.3 ft in 3150 mm
GROUND CLEARANCE 1.7 ft in 510 mm
COUNTERWEIGHT CLEARANCE 4.1 ft in 1260 mm
TAIL SWING RADIUS 11.5 ft in 3500 mm
LENGTH OF TRACK ON GROUND 13.3 ft in 4040 mm
